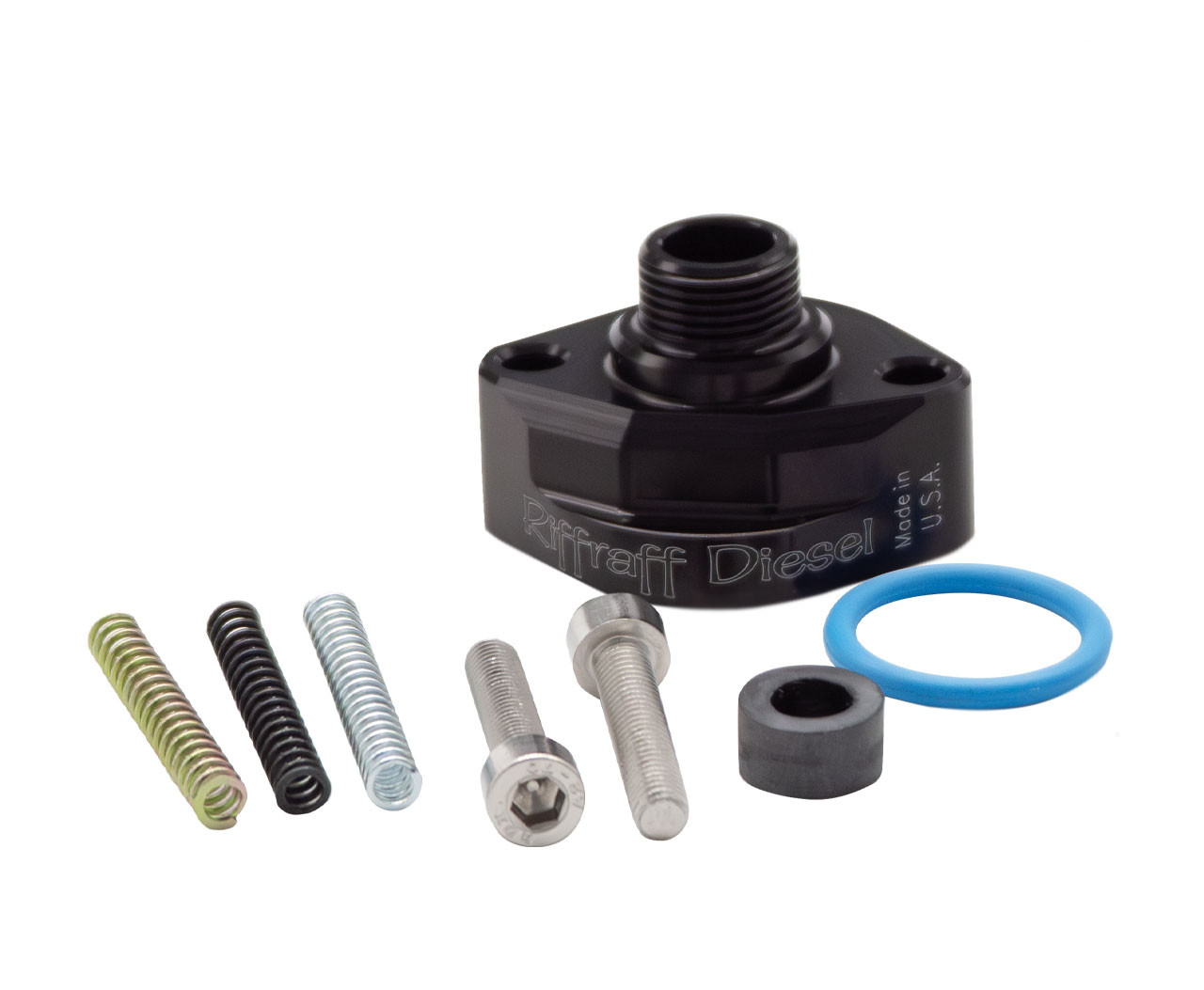

FPR Housing - Billet Aluminum w/ Pressure Shim Springs

Part Number:
GZ-7-033

Manufacturer:

$46.34

FPR Replacement Housing - Billet Aluminum 99-03 7.3L

100% MADE IN THE USA!

With 3 springs to allow you to set your fuel pressure to the performance levels that you wish to achieve

If you have broken the threads from the fragile stock housing or if you just want to increase your fuel pressure for better performance, this Heavy Duty billet housing with interchangeable springs is your solution. Manufactured to OEM measurements, it will easily replace the cast factory regulator housing.

The recommended installation procedure is to install the cap with the fuel bowl removed from the engine bay. You will need to purchase the compression sleeves for all 4 hard lines attached to the fuel bowl separately as they are not reusable seals. (part # 7-004; 7-005; 7-006)

Three different fuel pressure spring settings*
  1. 58-61 psi  silver spring  (Stock pressure)
  2. 62-65 psi  gold spring
  3. 67-70 psi  black spring
Also included in the kit is a new housing to fuel bowl o-ring and 2 new black oxide mounting bolts.

Due to the extreme weakness of the factory housing where the threaded compression fitting meets the housing body, we have received numerous calls from customers that have broken the threads off of the factory housing. Usually when this happens it is necessary to cut off the flare end of the hard line in order to remove the broken piece and compression nut from the line. The hardline then needs to be re-flared but it is now shorter and may be difficult to connect back to a factory housing.

With this in mind, we have made this housing wider than the original to compensate for those that have had to cut the end of the hardline off to repair this defect.

Please Note: The fuel compression sleeve that seals the return hard line to the FPR housing is NOT reusable. The old sleeve will come out in at least 2 pieces, if not so dried up and cracked that you will have to remove the pieces with a pick tool. If you attempt to re-use a compression sleeve after it has been in service a few thousand miles, it will leak. Order a new Parker compression fuel sleeve from the bottom of this page as a related item.
*Note: Fuel pressure data was gathered by using a analog mechanical guage on a test bench using a 2001 fuel bowl with no fuel filter and a Walbro GSL-392 fuel pump. The housing was then moved to live testing on a 2002 7.3L F350 and using multiple springs, a digital fuel pressure gauge rated at 1/2 of 1% accuracy and a stock Ford Bosch fuel pump, identical data was collected. Due to accuracy tolerances of various pressure gauges and spring tensions from the manufacturing process, your pressure readings could have variances from these results.
Write a Review

17 Reviews Hide Reviews Show Reviews

  • 5
    Personal review

    Posted by Carter sarkinen on Aug 11th 2023

    The shipping was unexpectedly fast, and the packaging was great. It was tricky to get in but I didn't remove my alternator bracket for the fuel lines to move freely, but it looks a lot nicer than the old FPR Housing and I'm greatly satisfied with the product I will continue shop on riffraff!

  • 5
    Billet FPR housing

    Posted by Jason Smith on Apr 21st 2023

    Quality piece, easy install

  • 5
    FPR billet aluminum housing kit w/ springs

    Posted by Mark Falcon on Jan 19th 2023

    The kit I purchased is great. I just haven’t had the time or the weather to cooperate with getting it installed. Is it possible to return the other standard FGR fitting I purchased? I don’t think I need it now. You crew ROCKS!!!

  • 5
    Fuel pressure regulator housing

    Posted by James E. on Dec 31st 2022

    If you are considering replacing your fuel pressure regulator spring go ahead and buy this kit.

  • 5
    FPR HOUSING - BILLET ALUMINUM W/ PRESSURE SHIM SPRINGS

    Posted by MikeFromMT on Jul 26th 2022

    If you're working on your Fuel Bowl or thinking about replacing your FPR springs do yourself a favor and buy this kit, the factory housing is very brittle and will likely leak even if you manage to not break off the threaded portion, this part is far better and stronger than the factory part, plus it comes with a choice of springs. It's also an easy replacement even if the Fuel Bowl is installed.

  • 4
    For housing

    Posted by James sherwood on Mar 20th 2022

    Love to fast shipment the product looks great. I put the gold spring in hoping to get a little more pressure was running at 60 psi how I am only running 61 to 62 the spring I put in said it would be around 65.

  • 5
    MUST HAVE

    Posted by Bertha on Feb 1st 2022

    Do yourself a favor if you are doing anything with the inlet side of the fuel bowl or the lines there just get this first it's well worth the money and will save a you ALOT of time and stress seeing as the original OEM part just loves to break which in the end will cost you more money than this.

  • 5
    Very well made.

    Posted by Paul Huffstickler on Dec 13th 2021

    The old cast aluminum regulator cap broke off into the hard fuel line. It took 3 days to get the new part and was super easy to install. As far as a superior product I don’t think riffraff can be matched.

  • 5
    fpr housing and springs

    Posted by eric on Oct 23rd 2021

    best damn 46 bucks I've spent in a long time.
