A bad-acting 7.3 Powerstroke IPR does not always need to be replaced. Many are simply contaminated with oil debris, varnish, or simply have worn seals. Most replaced IPR failures are really contamination issues that can be cleaned and resealed.

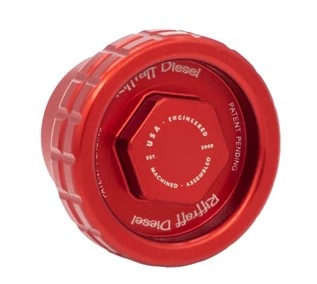

The Riffraff Diesel IPR Disassembly Tool (RDP-IPRD) was built for that job. It holds the 7.3L Injection Pressure Regulator securely during disassembly while protecting the precision-machined surfaces that can be damaged by pipe wrenches, bench vises, locking pliers, or other improvised tools.

Check it out: https://www.riffraffdiesel.com/riffraff-diesel-ipr-disassembly-tool-94-03-7-3l/

Full IPR Disassembly and Cleaning How To Here: https://www.riffraffdiesel.com/blog/rebuilding-the-73l-injection-pressure-regulator-ipr-its-easier-than-youd-think/

Why this tool matters

The IPR is a small part, but it has a big job. It controls how much high-pressure oil the HPOP sends to the injectors, and the 7.3 HEUI system depends on clean oil and accurate IPR operation. When the small internal passages load up with contamination, the truck can start hard, run rough, surge, stall, or build inconsistent ICP pressure.

You can tear one apart with vise-grips. That does not mean you should. While it can be done care must be taken not to mar the surface or crush the nose of the IPR, because that can make the regulator unusable.



What makes it different?

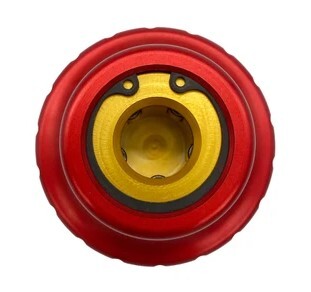

The Riffraff tool uses patent-pending Roll-Loc Technology with hardened rollers that grip the IPR body evenly. As torque is applied, the rollers maintain contact and create a self-energizing grip instead of digging into the housing. That spreads clamping force around the body and reduces the risk of scarring or distortion.



Key features

• Fits 1994–2003 7.3L Powerstroke IPR valves
• Part number RDP-IPRD
• Patent-pending Roll-Lock™ Technology
• Self-energizing roller design
• Helps prevent marring and crushing the IPR body
• Replaces pipe wrenches, locking pliers, vises, and other sketchy methods
• Precision-machined for repeatable use
• Designed, manufactured, and assembled in the USA



Use

Remove the IPR from the truck, clean the outside before opening it, remove the tin nut, spacer, and solenoid body, secure the IPR with the Riffraff disassembly tool, unthread the valve assembly, clean the internal parts, replace the seals, then reassemble. Note: the tin nut torque spec is 35–40 in-lb.



Smart add-ons

Pair the tool with the IPR Complete Re-Seal Kit (AP0003) or the IPR O-ring Repair Kit (GZ-14-008) so the regulator can be properly cleaned and resealed while it is apart.



Bottom line: If you’re searching for a 7.3 Powerstroke IPR rebuild tool, IPR disassembly tool, or 1994–2003 7.3 IPR cleaning tool, the Riffraff Diesel RDP-IPRD IPR Dissassembly Tool gives you a clean way to service the regulator without destroying a reusable part.
