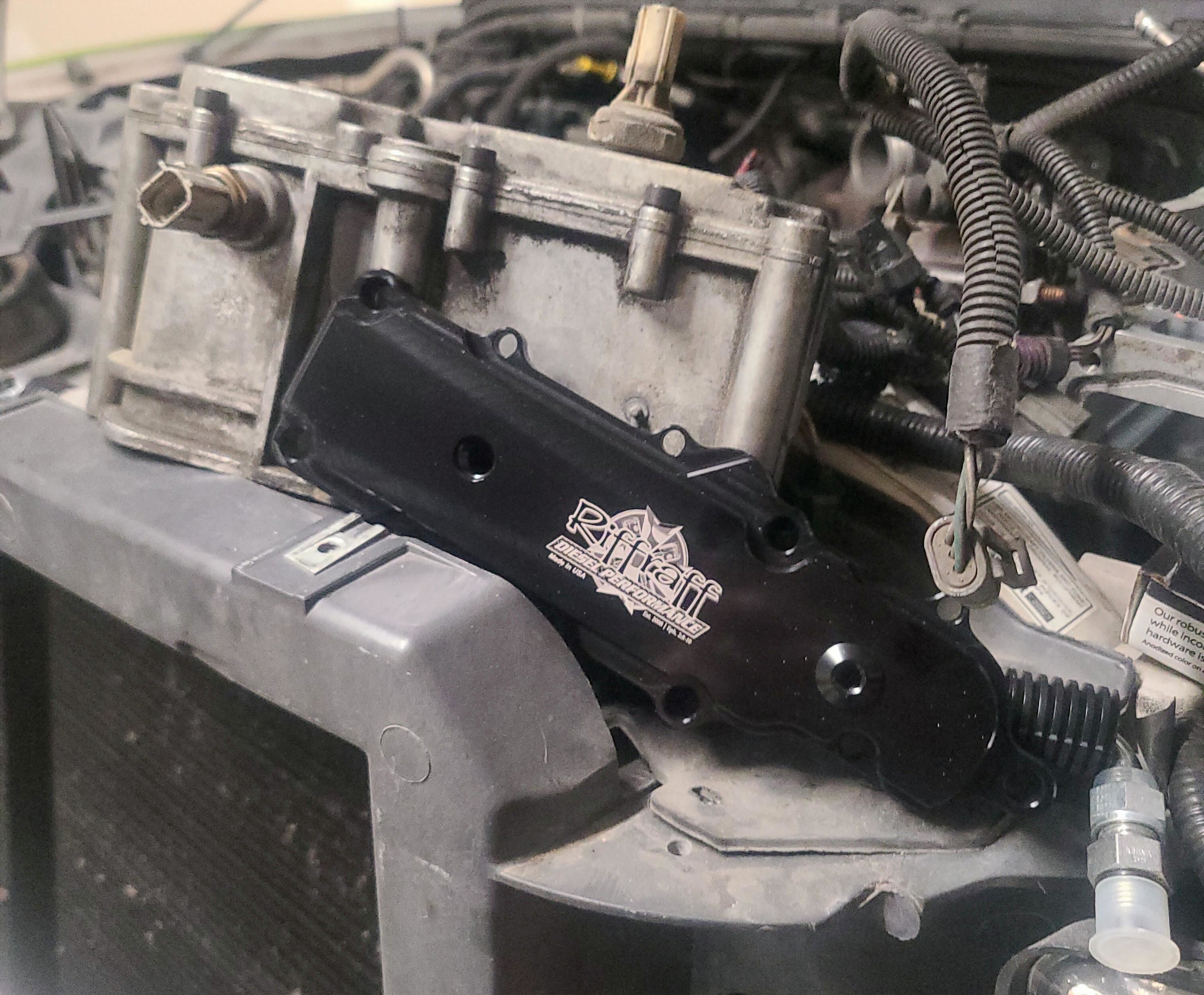

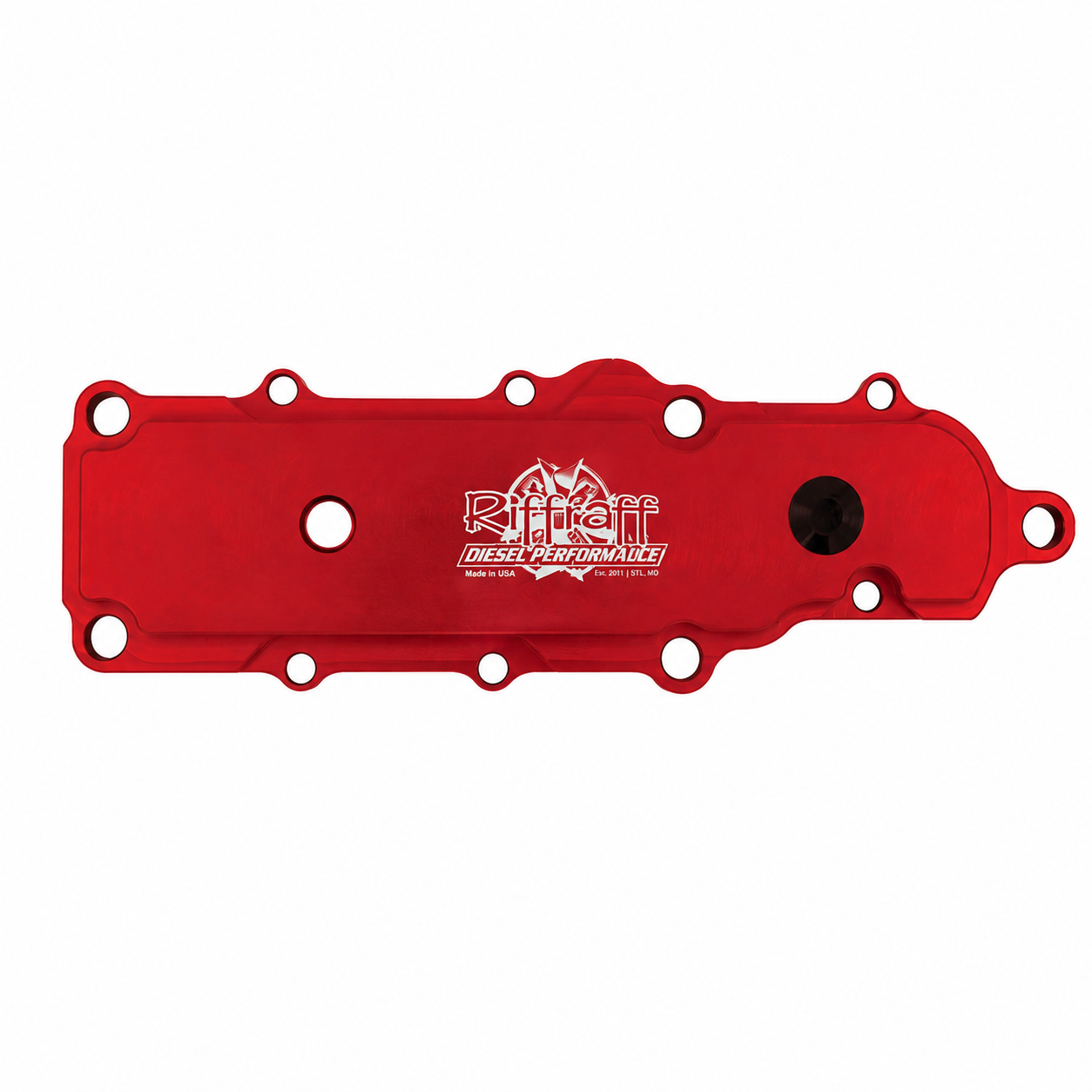

The 7.3 Powerstroke HPOP reservoir cover is one of those small parts that gets annoying fast when the fill plug is stripped, the cover is tired, or the reservoir needs to be topped off without making a mess. Our Riffraff Diesel Billet HPOP Reservoir Cover (RDP-HRC) is a cost-effective replacement for the stock cover with a cleaner, stronger design. Machined in America, from American made 6061-Aluminum.

Check It Out: https://www.riffraffdiesel.com/riffraff-diesel-hpop-billet-reservoir-cover-1999-2003/

Why upgrade over the stock cover?

Better sealing. Better construction. Better esthetics. Plus, this billet cover uses a -6 ORB fill port that is 76% larger than factory, making HPOP reservoir filling cleaner and easier. It also replaces the stock-style cover with 6061-T6 billet aluminum, a billet fill plug with a Viton seal, a top cover Viton O-ring, and stainless mounting hardware.

Key features

• Complete replacement HPOP reservoir cover
• 76% larger than factory -6 ORB fill port
• Billet fill plug with Viton seal
• HPOP reservoir top cover Viton® O-ring
• Stainless cover mounting hardware
• 6061-T6 billet aluminum

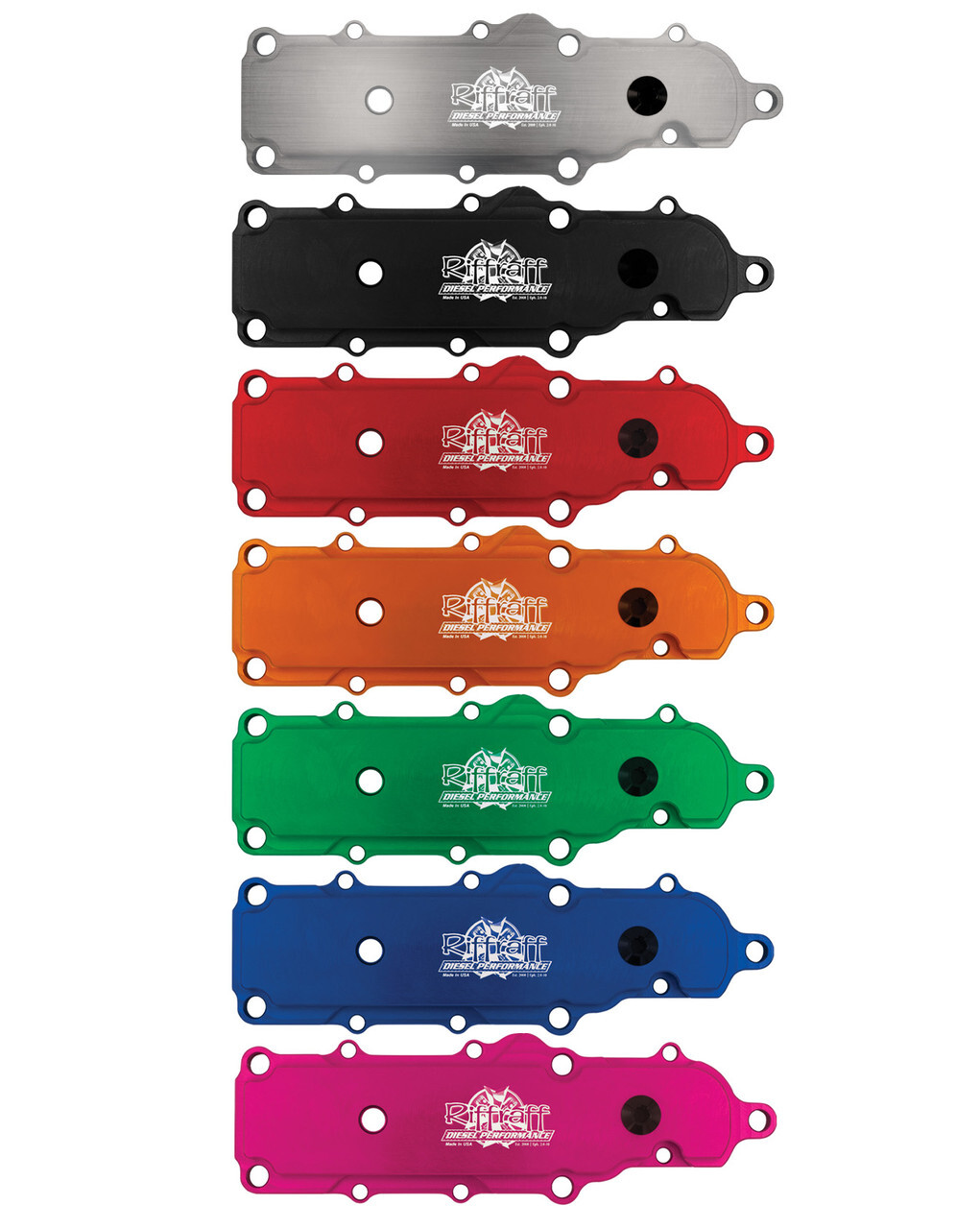

• Anodized finish options
• 100% Made in the USA
• OEM reference: F81Z 6A655 AA

Fitment note

This cover is designed for 1999–2003 7.3L Powerstroke HPOP reservoirs. It can also be used on 1996–1997 trucks only if the truck has been upgraded to a 1999–2003 HPOP reservoir, since the stock OBS reservoir is one piece and does not have a removable cover.



Recommended hardware

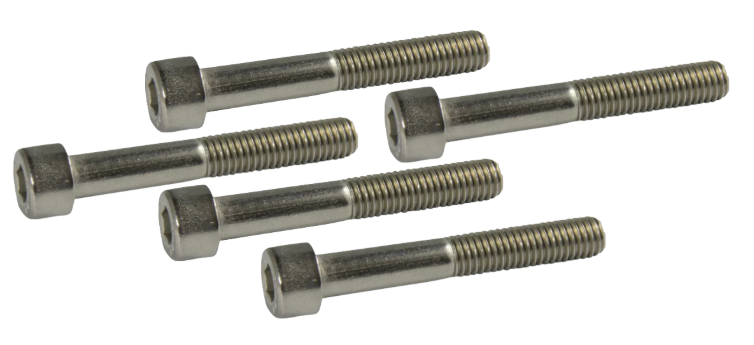

We recommend the optional RDPHRC-BOLT stainless steel bolt kit for best fit and finish, with the billet cover. If you’re running a Riffraff Mini or Large Spacer, you already have the correct bolts.



Install

Remove the old HPOP reservoir cover, clean the sealing surface, install the new Viton O-ring, set the billet cover in place, install the stainless hardware, tighten evenly, install the billet fill plug, then fill/prime the reservoir and check for leaks.

Care note: harsh chemical engine cleaners can damage anodized aluminum. Use soap and water only.



Bottom line:

If you’re searching for a 7.3 Powerstroke HPOP reservoir cover, billet HPOP cover, or larger 7.3 HPOP fill port, the Riffraff Diesel Billet HPOP Cover RDP-HRC is the clean upgrade over the stock cover: better hardware, Viton sealing, and USA-made billet construction.
