The factory 1999–2003 7.3 Powerstroke fuel system is a deadhead setup: fuel enters the heads, feeds the injectors, heats up, and then has no real path out of the fuel galleries. That can leave trapped air in the rails, uneven fuel pressure, hotter fuel at the back of the heads, more injector cackle, and harder injector life over time.

The Riffraff Diesel Fuel Rail Crossover FRx fixes that by connecting the two heads and adding a metered return path back to the tank. Instead of forcing air through the injectors, the FRx gives fuel and air a controlled exit path, helping the truck idle smoother, run quieter, improve throttle response, and support longer injector life.

Check It Out:  https://www.riffraffdiesel.com/fuel-rail-crossover-frx/

Why upgrade?

The FRx is a clean way to add regulated-return behavior, while keeping the stock fuel bowl. It is a true bolt-on system, so there is no need to cut the return line or use compression fittings. The 2nd FRx uses Eaton Aeroquip 304 stainless braided lines covered with DuPont HYTREL protective sleeving, which helps prevent chafing and keeps the install looking closer to OE.



Key features

• Solves the 99–03 7.3 deadhead fuel rail issue
• Connects both heads with a metered return path
• Helps remove trapped air from the fuel galleries
• Can smooth idle, reduce cackle, and improve throttle response
• Eaton Aeroquip 304 stainless braided lines
• DuPont HYTREL protective cover
• Includes 3 fuel pressure springs
• Includes Viton O-ring, Parker fuel sleeve, stainless bolts, and custom 9/32" socket
• Made in the USA
• Fuel pressure spring options

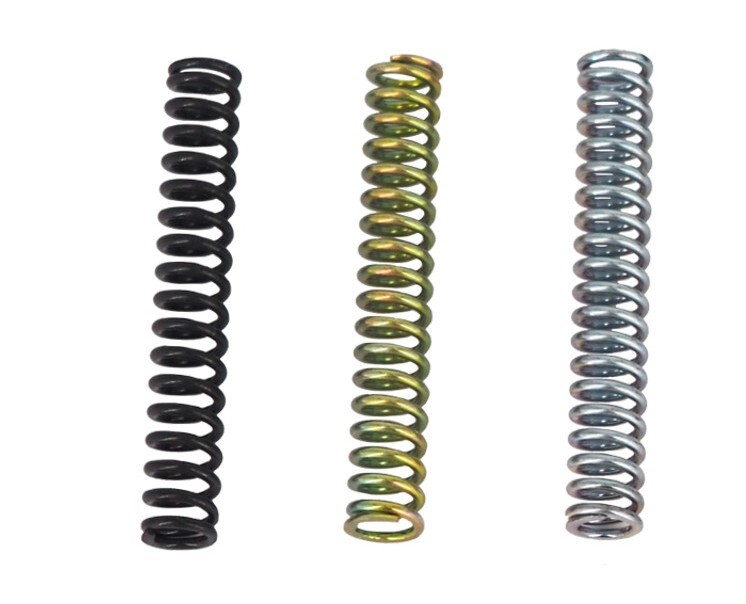

The three fuel pressure spring settings:

Silver spring: 55–60 psi

Gold spring: 61–65 psi

Black spring: 66–72 psi



Fitment note

The FRx fits 1999–2003 7.3L Powerstroke trucks with the stock fuel bowl.



Install

Drain the fuel bowl, remove the factory fuel return line and regulator, install the FRx regulator block with the selected spring, install the JIC fittings at the fuel test ports, route the stainless lines carefully, cycle the key 2–3 times to prime the system, check for leaks, then start the truck and re-check after a short test drive.

Full installation instructions can be found here: https://www.riffraffdiesel.com/mm5/RESOURCES/Riffraff_Diesel_FRx_Instructions.pdf

Important: line routing matters. Keep the hoses away from wiring, sharp edges, and anything that can rub through the protective sleeve over time.



Bottom line:

If you’re searching for a 7.3 Powerstroke fuel rail crossover, 7.3 regulated return, or 7.3 injector cackle fix, the Riffraff Diesel FRx is one of the cleanest stock-fuel-bowl upgrades for better fuel flow, smoother running, and improved injector support.
