Front ABS Greas-able Block Off Fitting: How To

Front ABS Greas-able Block Off Fitting: How To

Aug 15th 2025

The front wheel bearings on Dana 50 and 60 axles are not designed to be serviced or greased regularly. This lack of serviceability reduces their lifespan. We've found that adding grease at regular intervals significantly extends the wheel bearing's lifespan. However, the axle doesn't have an easy way to get this job done. Thats why we created the Front ABS Grease-able Block Off Fitting. This fitting is designed to be installed in place of the ABS sensor during service. Grease is then added via the fitting's zerk fitting, and once done, the fitting is removed so the ABS sensor can be reinstalled (on rear wheel ABS only trucks, the Grease-able fitting can be installed permanently). A quick and easy job that'll help extend your wheel bearings' life.
Side Note: The Front ABS Grease-able Block Off Fittings are the perfect way to cleanly block off the ABS sensor hole for those who are not using ABS. Not only for rear wheel ABS only Ford trucks, but for Jeep axle swaps and more.

Full PDF Instructions can be downloaded here: Riffraff Diesel Front ABS Grease Fitting Instructions

IMPORTANT: Before starting installation, please be sure that all items that were supplied with the kits are accounted for.

Parts Required:

Riffraff Diesel Front ABS Grease-able Block Off Fitting

Grease Options:

Mobil 1 Synthetic Wheel Bearing Grease

Valvoline Cerulean Grease

Instructions:

1. Raise the front axle high enough to provide clearance for the tires to be removed. Utilize a jack stand to support the axle

2. Remove the wheel and tire assy. from the axle.

3. Clean the area around the ABS Sensor of dirt and debris.

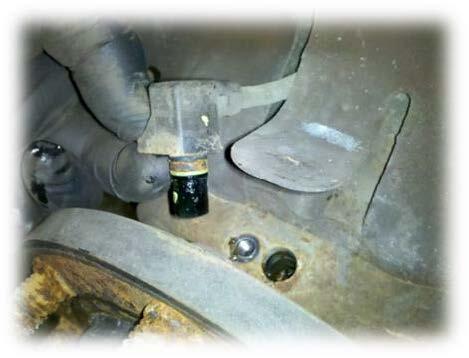

4. Remove the ABS Sensor from the hub assy. You may have to slightly bend the brake dust shield away to provide clearance.

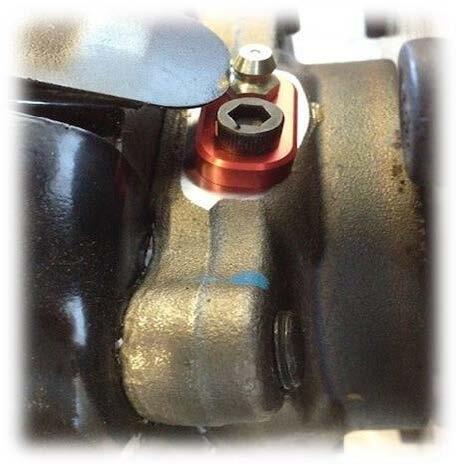

5. Install the Riffraff Diesel Front ABS Grease-able Block Off Fitting into the ABS bore. Use the ABS hold-down bolt as required. (can be permanently installed for 2WABS systems if desired)

6. Using a grease gun with a Zerk fitting, pump a high quality wheel bearing grease into the hub while spinning the rotor to distribute the grease.

7. Repeat for other side.

8. Remove the Riffraff Diesel Front ABS Grease-able Block Off Fitting from the ABS bore and re-insert the ABS Sensor.

9. Tighten the ABS Sensor bolt to 13 ft-lbs.

10. Reposition the brake dust shield to the original contour.

11. Re-install the wheel and tire assy. Torque the wheel lug nuts 155-165 ft-lbs.

12. Lower the vehicle and enjoy your newly greased hub bearings!


Instructions and pictures provided by Ken (Woodnthings on FTE)
