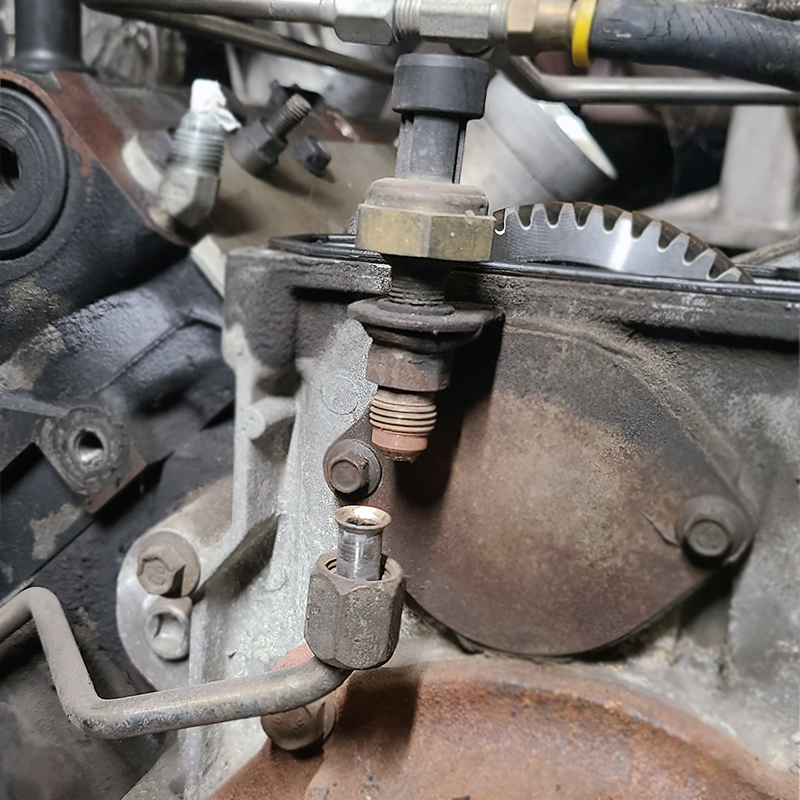

The 7.3 Powerstroke exhaust back pressure tube connects the passenger-side exhaust manifold to the EBP sensor mounted near the front of the HPOP reservoir. That tube lets the sensor read exhaust pressure, which the PCM uses for warm-up strategy, fueling, timing, and overall drivability. Over time, the tube can plug with soot, rust, or break apart. When that happens, the sensor may read low, read only atmospheric pressure, or send bad data to the PCM. The result can be sluggish throttle response, cold-start smoke, slower warm-ups, reduced fuel economy, or EBP-related codes. Getting ahead of these issues is key to reliability.

Part Link: https://www.riffraffdiesel.com/exhaust-back-pressure-tube-ebp-99-03/



Why replace it?

The EBP sensor itself is not usually the problem. The most common EBP issue is a clogged backpressure tube, not a failed sensor. Cleaning can work and often times does, but if the tube is corroded, cracked or restricted beyond saving, replacement is the best option.

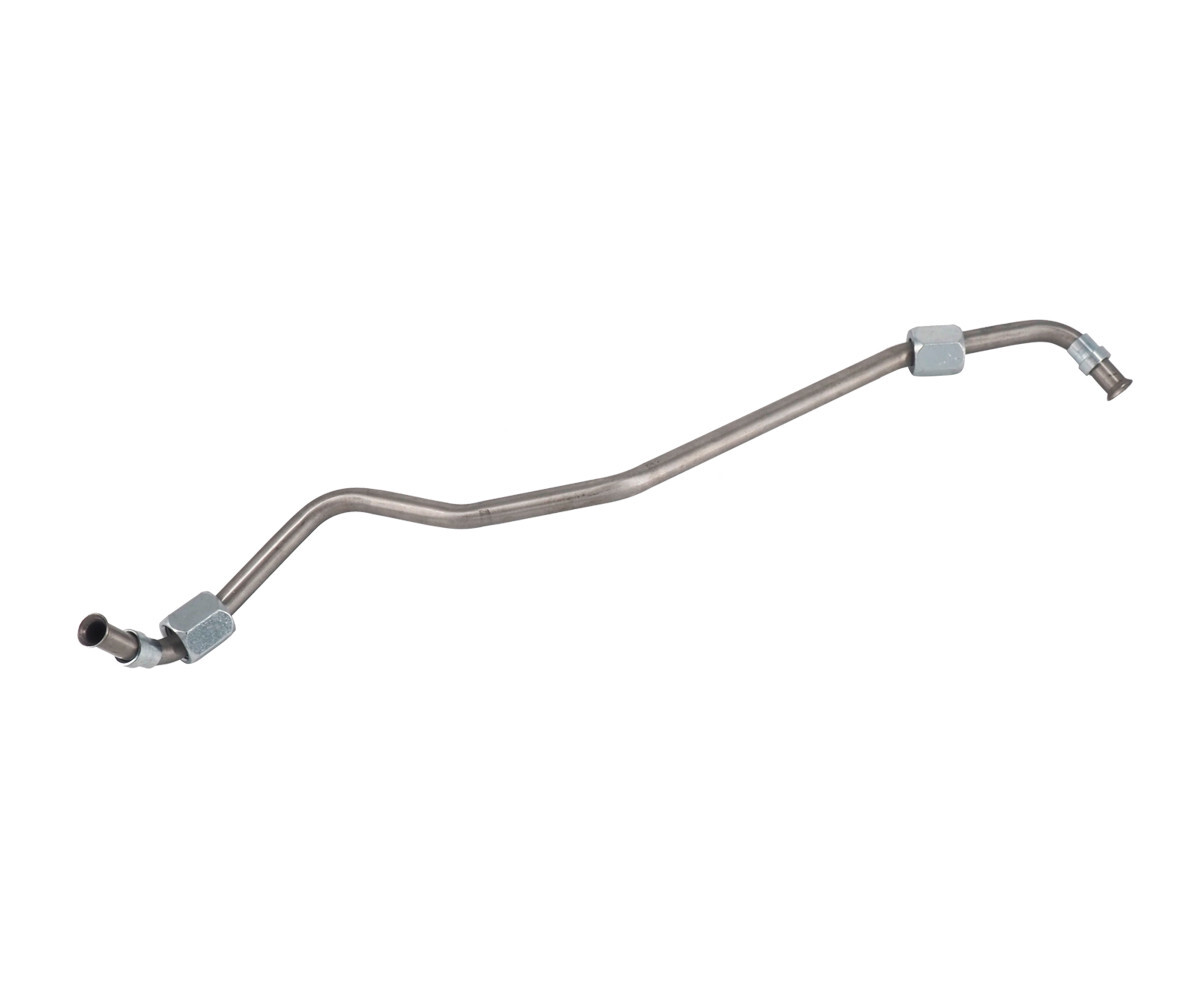

Key details

• Ford part number: 1C3Z9D477AA
• Fits 1997(production date 5/13/1997 and after)–2003 7.3L Powerstroke
• Application: Excursion, E-Series, and F-Series
• Runs from the passenger-side exhaust manifold to the EBP sensor
• Helps restore accurate EBP sensor data
• Common fix for soot-clogged, rusted, or broken EBP tubes

Symptoms of a bad or clogged EBP tube

Common signs include sluggish acceleration, reduced MPG, smoky cold starts, slow cold-weather warm-up, and codes such as P0470, P0471, P0472, P0473, P0475, P0476, or P0478. P0471 is especially common when the tube is clogged or leaking.



Install

Unplug the EBP sensor, loosen the tube at the sensor end, loosen the tube at the passenger-side exhaust manifold, remove the old tube, install the new tube finger-tight at both ends then tighten the fittings carefully, reconnect the sensor, then start the truck and check for leaks (using a spray bottle with soapy water to soak the connections can help identify leaks, look for bubbles).



Bottom line: If you’re searching for a 7.3 Powerstroke EBP tube, exhaust back pressure tube replacement, or P0471 7.3 Powerstroke fix, this is the first part to inspect.
