A bad thermostat doesn't always make a 6.0L Powerstroke overheat.

In fact, one of the more common failures is the opposite. The thermostat starts opening too early or won't fully close, and the engine struggles to reach normal operating temperature.

The factory 6.0L thermostat begins opening around 188 to 196°F and isn't fully open until roughly 219°F.



Quick Answer

Watch ECT, or Engine Coolant Temperature, with a scan tool.

If the engine takes forever to warm up, struggles to reach roughly 190°F during normal driving, or temperature drops noticeably at highway speed, the thermostat may be stuck open.

If temperature climbs rapidly toward overheating while coolant level, fan operation, and circulation are otherwise good, it may be stuck closed.



1. The Engine Won't Get Up to Temperature

This is probably the easiest one to spot.

A thermostat that's stuck partially open allows coolant through the radiator before the engine is warm enough to need it.

You may notice ECT hovering in the 160s or 170s, especially in cold weather, instead of getting into its normal operating range.



2. The Heater Isn't Very Hot

If the engine isn't getting hot, neither is the heater core.

You may get warm air from the vents, but not the kind of heat you'd expect from a fully warmed 6.0L.

This is especially noticeable at idle or during winter driving.

A weak heater by itself doesn't prove the thermostat is bad, but weak cabin heat combined with low ECT is a pretty good clue.



3. ECT Drops While Cruising

This is another good stuck-open clue.

The truck may eventually warm up around town, then coolant temperature starts falling once you're cruising down the highway in cold weather.

Why?

More air is moving through the radiator, and a thermostat that isn't closing properly can't regulate how much coolant passes through it.

If ECT consistently falls as vehicle speed increases, we'd start looking closely at the thermostat.



4. The Engine Overheats

Less common compared to the prior issues, but a thermostat can fail the other direction too.

If it sticks closed or doesn't open far enough, coolant can't move through the radiator fast enough to get rid of engine heat.

Watch for:

• Rapidly climbing ECT
• Overheating under load
• Coolant venting from the degas bottle
• Upper cooling-system temperatures rising abnormally

Don't automatically blame the thermostat, though. A 6.0L can overheat from a weak fan clutch, restricted radiator, water-pump problem, low coolant, or other cooling-system issues. A stuck-closed thermostat is one possibility, not the only one.



5. P0128 or Abnormal Scan Data

P0128 means the engine isn't reaching the expected thermostat-regulated coolant temperature.

That makes the thermostat an obvious suspect, but check coolant level and make sure the ECT sensor is reporting correctly before replacing parts. Ford specifically notes that ECT sensor or wiring faults can make the PCM think the engine is colder than it really is.

Even without a code, scan data can expose the problem.

A healthy thermostat should let the engine warm steadily, then regulate temperature instead of allowing ECT to stay unusually low or swing around with vehicle speed.



How We'd Test It

Start with a completely cold engine and monitor ECT with a scan tool or other aftermarket gauge that shows actual temp values.

Drive the truck normally and watch how quickly temperature rises.

The thermostat should remain closed during warm-up, then begin opening around 188 to 196°F.

If the truck can't get close to that range during normal driving, especially when ambient temperatures aren't extremely cold, the thermostat moves pretty high on our list.

If ECT shoots past normal instead, don't immediately install a thermostat. Verify coolant level, fan operation, water-pump circulation, and radiator condition first.



Don't Forget the Housing

While you're in there, inspect the thermostat housing.

The factory 6.0L housing is prone to corrosion around the hose connection. Once the sealing surface starts pitting, another clamp usually isn't the answer.

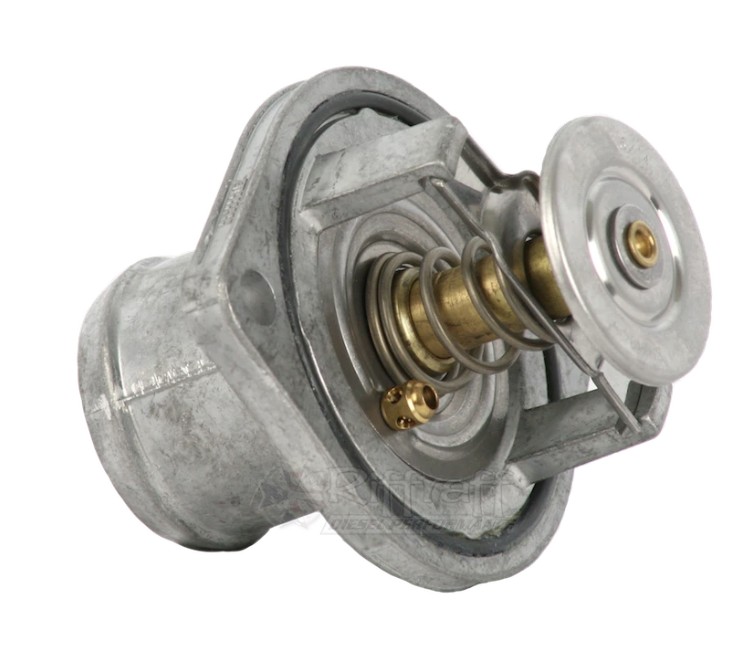

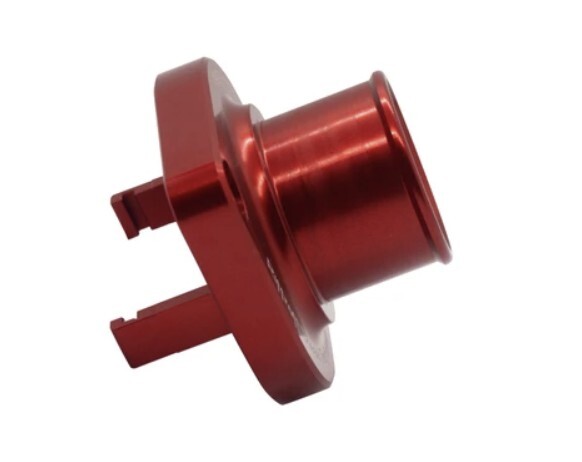

We carry the Motorcraft Thermostat Assembly 03-07, 3C3Z-8575-AA, along with our Riffraff Diesel 6.0L Billet Thermostat Housing if the original housing is corroded.



The Bottom Line

The most common clue to a bad 6.0L thermostat isn't overheating. It's an engine that runs too cold.

If ECT takes forever to climb, never gets near normal operating temperature, or drops noticeably at highway speed, check the thermostat.

If the engine is overheating instead, the thermostat can still be responsible, but make sure the rest of the cooling system gets checked before throwing parts at it.
