The 6.0L Powerstroke is known for making good power, but the factory torque-to-yield head bolts are one of the places owners stop taking chances. When cylinder pressure goes up—whether from tuning, towing, boost, or a cooling-system failure that leads to head gasket issues—the stock fasteners can become the weak link.

The ARP Head Stud Kit (250-4202) is the standard upgrade for 2003–2007 6.0L Powerstroke head gasket jobs. ARP rates these studs at 220,000 psi tensile strength, and they are designed to provide the clamping force needed to help keep the cylinder heads from lifting under higher combustion pressure.

Check them out: https://www.riffraffdiesel.com/arp-headstud-kit-03-07-6-0l/

Why upgrade over factory head bolts?

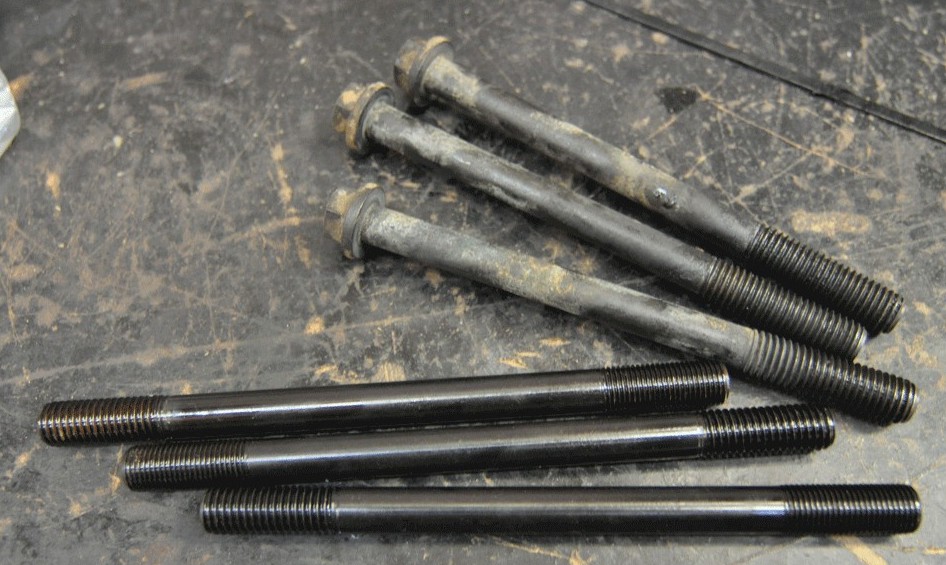

Factory torque-to-yield bolts stretch during installation. That design works in a stock environment, but once the engine sees higher cylinder pressure or a head gasket failure, stronger and more consistent clamping becomes the priority. Plus, the 6.0 simply wasn't built with enough clamping pressure from the get go (hence the 6.4's move to larger head fasteners). ARP studs help solve that with stronger material, better fatigue strength, and more consistent clamping force.

Key features

• Fits 2003–2007 6.0L Powerstroke
• Rated at 220,000 psi tensile strength
• Threads rolled after heat treatment for fatigue strength
• Centerless ground for concentricity
• Broached stud ends for easier installation and head removal
• Includes heat-treated chrome-moly 12-point nuts and parallel-ground washers
• Black oxide finish for durability

When to install them

Head studs make the most sense when the heads are already off for a head gasket repair, engine refresh, or performance build. But, many add them as preventative maintenance on their own. They can be replaced without pulling the heads, if done correctly.

However, don’t treat studs as a shortcut around the real problem. If the truck has a failed EGR cooler, restricted oil cooler, warped heads, or damaged gasket surfaces, those issues need to be addressed at the same time.

Install

Remove the cylinder heads, inspect and machine the heads/block surfaces as needed, install new head gaskets, thread the ARP studs into the block by hand, install the washers and 12-point nuts with ARP assembly lube, torque in the correct sequence and stages per ARP instructions, then finish reassembly and verify coolant/oil system health before putting the truck back to work.

Recommended add-on

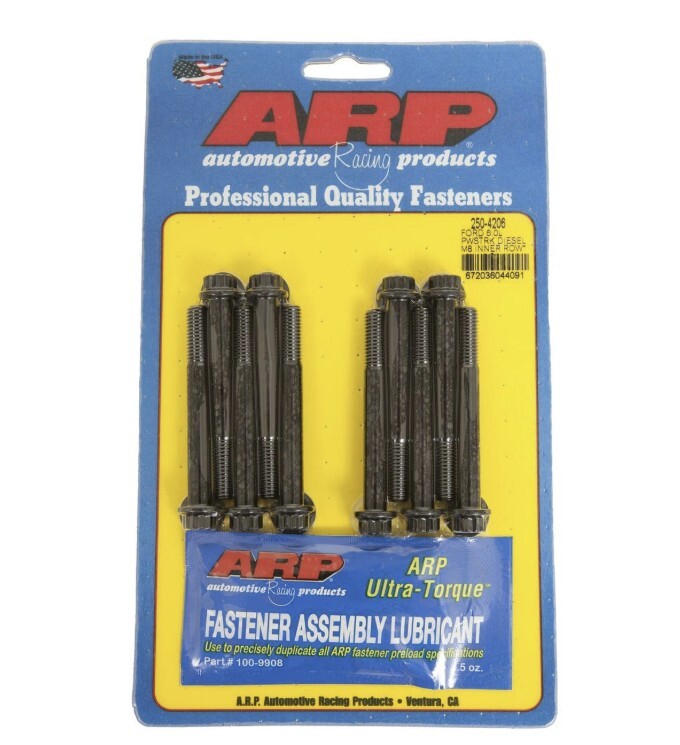

When doing the install it's a good idea to pick up a set of ARP Inner Row Head Bolts 03–07 6.0L (250-4206) to complete the job.

Bottom line: If you’re searching for 6.0 Powerstroke head studs, ARP 250-4202, or a 6.0 head gasket repair upgrade, this is the proven fastener kit for adding clamping force where the factory bolts fall short.
