Parts Required:

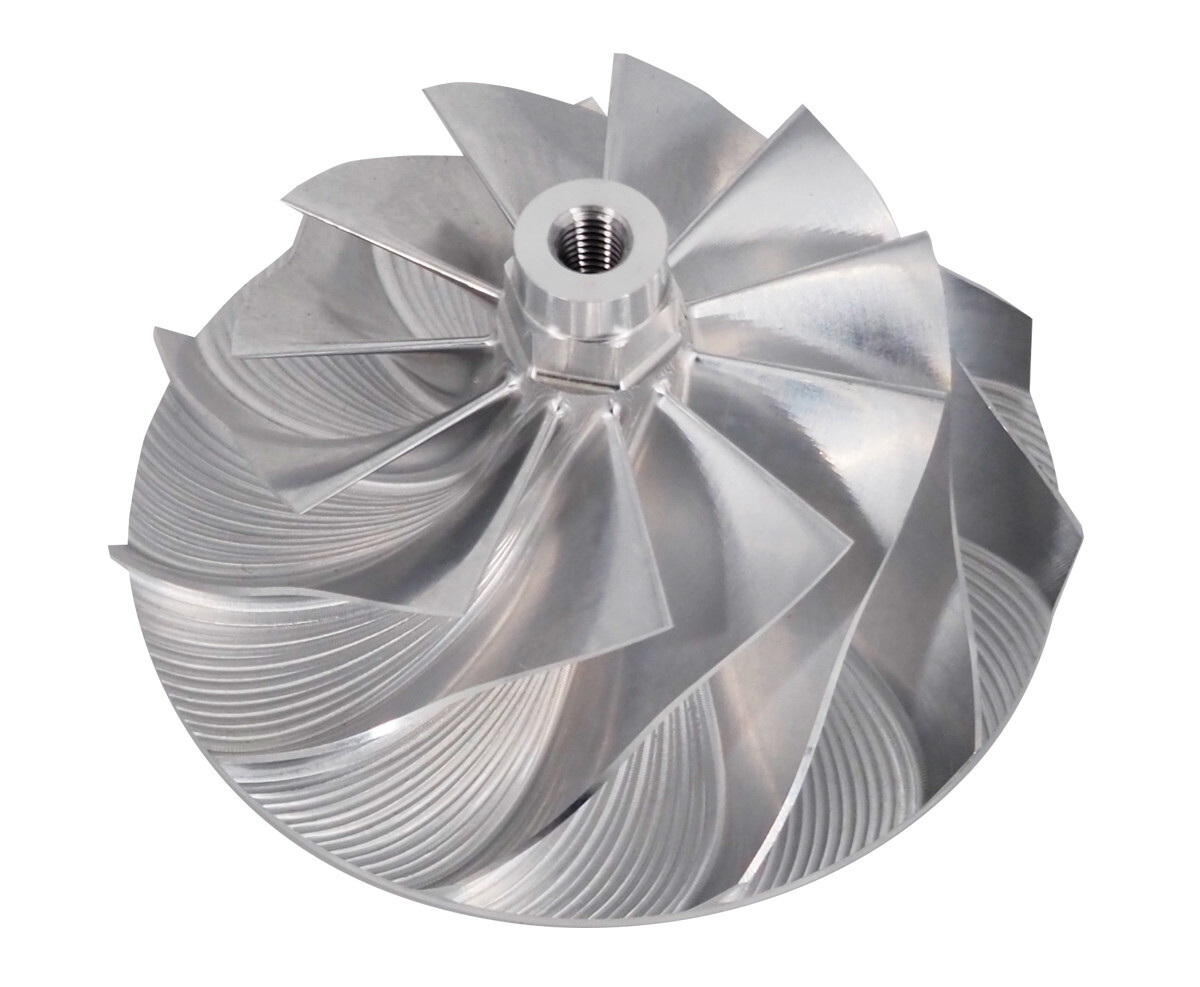

Riffraff Diesel Billet Compressor Wheel - Ported Housing: Part# RDP-703697-0001

Garrett Compressor Housing O-ring: Part# GZ-14-010

Turbo Pedestal O-ring Kit: Part# GZ-9-003



Recommended Tools:

• Metric socket and wrench set
• Common screwdrivers
• Torque wrench



IMPORTANT: Before starting installation, please be sure that all items which were supplied with the kit are accounted for.



1.  Remove the turbo charger using these instructions: 99.5-03 Turbo Charger R&R Instructions

2.  Remove the Exhaust Back Pressure Valve (EBPV) from the turbine housing.

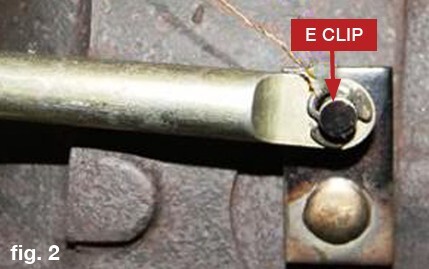

3.  Remove the wastegate E clip from the wastegate actuator rod end. (fig. 2)

4.  Remove the two (2) nuts holding the wastegate actuator onto the compressor housing using a 10 mm socket.

5.  Remove the five (5) compressor housing bolts using a 5/16” or 8 mm socket.

6.  Remove the compressor housing from the turbo.

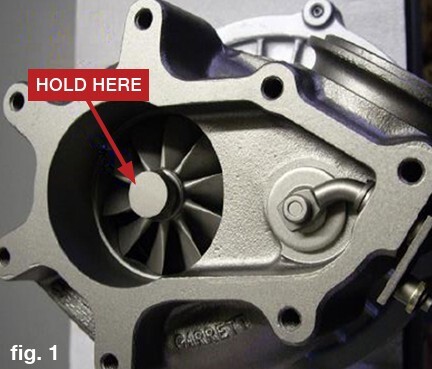

7.  Using locking pliers, grab onto the turbine wheel hub securely too lock the turbo shaft to loosen the compressor wheel.

8.  Using a 16 mm wrench loosen the compressor wheel by turning counter-clockwise. Remove the wheel off of the shaft.

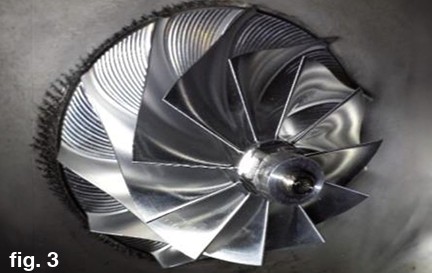

9.  Thread on the Anti Surge Compressor wheel onto the shaft. Tighten it down to 50-65 in-lb. CAUTION: DO NOT OVER TIGHTEN THE COMPRESSOR WHEEL ONTO THE SHAFT!

10.  Reinstall the compressor housing. Use a new compressor housing o-ring (GZ-14-010).

11.  Install the five (5) bolts and tighten evenly in a star pattern to 12 ft-lb.

12.  Install the EBPV onto the turbine housing and install the seven (7) bolts. Tighten to 30 ft-lb. We recommend high strength Loctite® thread locker on the bolts.

13.  Reinstall the turbo using the instructions listed in Step 1.



Instructions and pictures provided by Ken (Woodnthings on FTE)
