Bolt torque for the 6.0 Powerstroke shouldn’t be guesswork. So we pulled the specs from Ford service manuals and other trusted sources, then organized them all in one place below. Consider this your go-to resource for 6.0L Powerstroke torque specs.



Important Notes:

• The specs listed below assume you’re using factory-style parts and original hardware. If you’re installing aftermarket components, always follow the manufacturer’s recommended torque values.
• Make sure all fasteners and threaded holes, whether in the block, front cover, or elsewhere, are clean and in good condition. Damaged, dirty, or contaminated threads are one of the most common causes of stripped hardware.
• The information below was sourced from the most authoritative references we could find, primarily Ford and International service manuals. Even so, use good judgment any time you’re working on your engine.
• Some values are listed in pound-inch (lb-in), while others are listed in pound-feet (lb-ft). Double-check your torque wrench settings and make sure you’re using the correct unit.
• Ford changed the 6.0L cylinder head, rocker carrier, and injector hold-down setup for “commonization” starting January 2006 and the torque ratings changed with them. Make sure you're using the correct torque rating for your hardware.



Cylinder heads and valvetrain

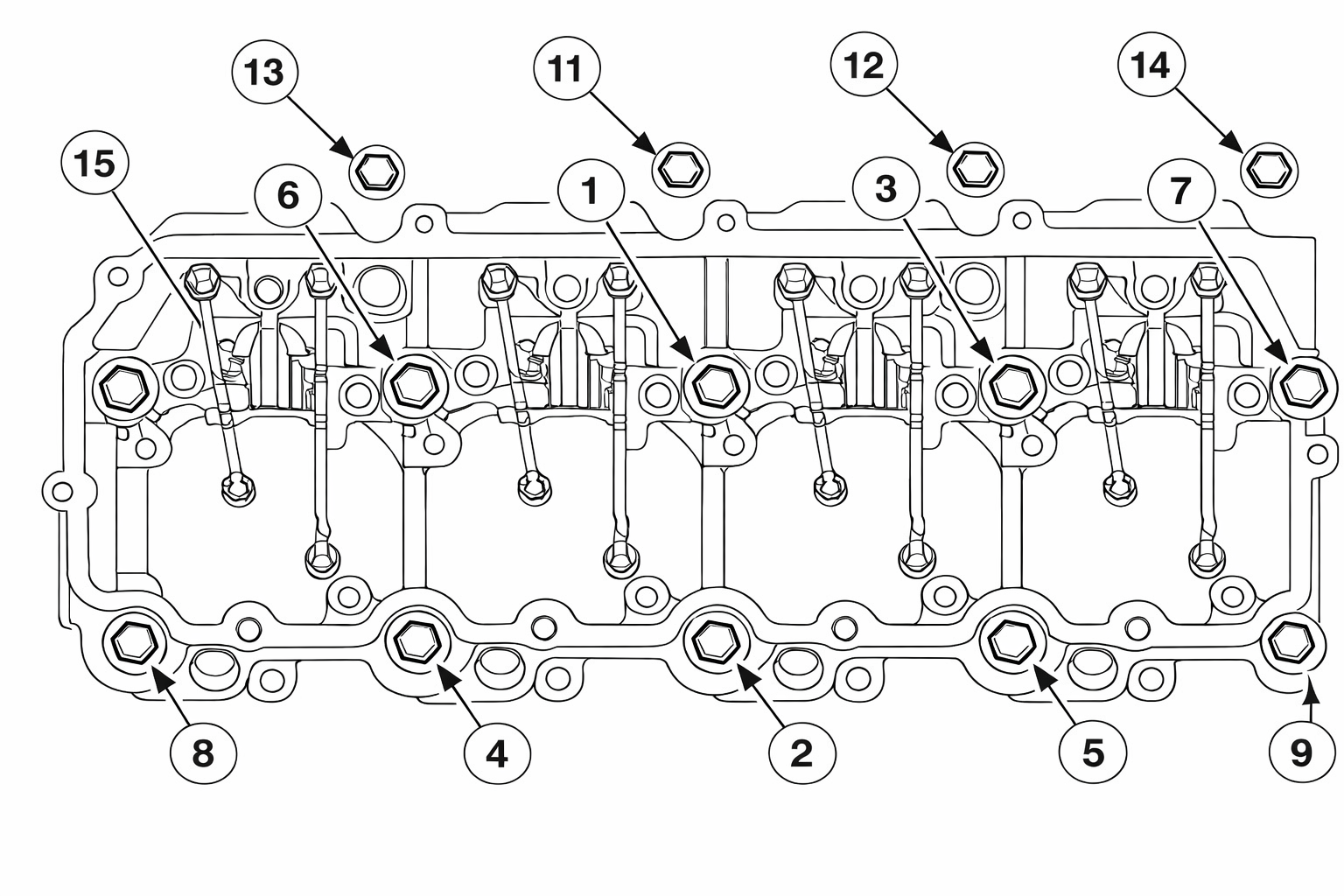

Cylinder head bolts:

*this torque procedure is to be done in steps

Cylinder head bolts, large M14 — 65 lb-ft, then 85 lb-ft, then turn each in sequence 90° three different times

Cylinder head bolts, *this torque procedure is to be done in steps: small M8 — 18 lb-ft, then 23 lb-ft

Rocker arm fulcrum bolts — 23 lb-ft

Valve cover bolts — 71 lb-in

Glow plugs — 14 lb-ft

Glow Plug Control Module bolts — 71 lb-in

Injector hold-down bolt, early engines — 24 lb-ft

Injector hold-down bolt, late/commonized engines — 25.8 lb-ft



High-Pressure Oil System

High-pressure oil rail bolts — 96 lb-in

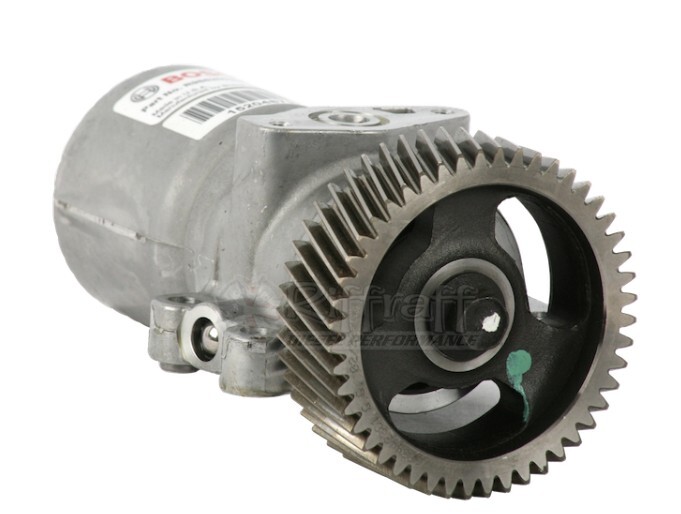

High-pressure oil pump mounting bolts — 18 lb-ft

High-pressure oil pump cover bolts — 96 lb-in

High-pressure oil pump cover plug — 26 lb-ft

High-pressure oil pump drive gear bolt — 95 lb-ft

High-pressure discharge tube mounting bolts — 71 lb-in

IPR valve — 37 lb-ft

ICP sensor — 106 lb-in

High-pressure oil rail check valve — 25 lb-ft

High-pressure standpipe, early — 33 lb-ft

High-pressure oil rail plug, M14 — 33 lb-ft

High-pressure oil rail plug, M8 — 96 lb-in

STC female quick-connect fitting — 38 lb-ft max

Branch tube retaining bolts — 10 lb-ft

Discharge tube 8 mm bolts — 11 lb-ft

Rear engine cover bolts — 18 lb-ft

HPOP mounting bolts — 26 lb-ft (as noted in a late TSB, prior to the TSB 18 lb-ft is listed)

Dummy plugs, updated style — 60 lb-ft

Standpipes, updated style — 60 lb-ft

Oil rail bolts, updated style — 120 lb-in



Fuel System / Intake / Exhaust / Turbo

Fuel check valve / banjo bolt — 28 lb-ft

Fuel filter supply and return lines — 32 lb-ft

Fuel filter supply-to-head lines — 19 lb-ft

Rear fuel rail plug — 20 lb-ft

Intake manifold bolts — 8 lb-ft

Exhaust manifold bolts — 28 lb-ft

Exhaust manifold flange to up-pipe — 20 lb-ft

Exhaust pressure tube nuts — 22 lb-ft

EGR valve bolts — 10 lb-ft

EGR cooler bolts/studs — 10 lb-ft

Turbo to mounting bracket bolts — 28 lb-ft

Turbo bracket to crankcase bolts — 23 lb-ft

Turbo exhaust adapter V-band clamp — 80 lb-in

Turbo oil supply bolts — 18 lb-ft

Turbo oil supply snap-connect fitting — 8–13 lb-ft

Air inlet duct clamp — 44 lb-in



Front Cover / Cooling / Oiling

Front cover bolts — 18 lb-ft

Oil cooler mounting bolts, M8 — 16 lb-ft

Oil cooler mounting bolts, M6 — 89 lb-in

Oil filter cap — 18 lb-ft

Oil filter housing bolts — 11 lb-ft

Oil filter standpipe, new — 53 lb-in

Oil filter standpipe, reused — 27 lb-in

Oil pan drain plug — 18 lb-ft

Oil pickup tube flange bolts — 18 lb-ft

Oil pump housing bolts — 72 lb-in

Oil pressure regulator plug — 19–21 lb-ft

Water pump bolts — 17 lb-ft

Water pump plugs — 26–28 lb-ft

Water pump pulley bolts — 23 lb-ft

Thermostat housing bolts — 17 lb-ft

Block heater — 30 lb-ft



Bottom End

Connecting rod bolts — *in sequence, 33 lb-ft, then 50 lb-ft

Main bearing / lower crankcase main bolts — *in sequence, 110 lb-ft, 130 lb-ft, then 170 lb-ft

Lower crankcase outer bolts — 18 lb-ft

Camshaft thrust plate bolts — 23 lb-ft

Piston cooling jet bolts — 10 lb-ft

Vibration damper bolts — 50 lb-ft for all, then add a 90° turn to all

Flywheel bolts — 69 lb-ft



Sensors / Misc.

CMP sensor — 96 lb-in

CKP sensor — 96 lb-in

ECT sensor — 106 lb-in

Engine oil pressure switch — 106 lb-in

IAT2 sensor — 13 lb-ft

Lifting eye bolts — 30 lb-ft

Crankcase breather nuts — 62 lb-in

Crankcase plug, M16 — 15 lb-ft
